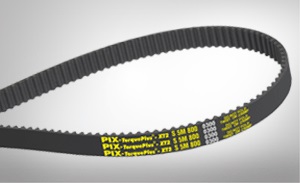

Click here...PIX-TorquePlus®-XT2 High Power Belts
Features
- 50% to 70% enhancement in power-rating over PIX-X'act® HTD/STD belts
- Synchronous power transmission
- High angular speed, resistance to loads and low noise
- Free from maintance, No lubrication
- Increased operational efficiency up to 98%
- Temperature resistance up to 100ºC
- Optimum operational efficiency and augmented belt life
- Lower operational cost
- Antistatic properties as required by ISO 9563
- Standard: BS 4548, ISO 13050, ISO 5296, DIN 7721
| Product Range | Section | Pitch(mm) | Tooth Height 'b' (mm) | Belt Thickness 'c' (mm) | Manufacturing Range | Length Designation | |
|---|---|---|---|---|---|---|---|
| 5M | 5.00 | 2.06 | 3.80 | 300 5M to 2250 5M | Lp | ||
| 8M | 8.00 | 3.48 | 6.00 | 344 8M to 4400 8M | Lp | ||
| 14M | 14.00 | 6.02 | 10.00 | 966 14M to 4578 14M | Lp | ||
| S5M | 5.00 | 1.91 | 3.40 | S5M 350 to S5M 2525 | Lp | ||
| S8M | 8.00 | 3.05 | 5.30 | S8M 376 to S8M 2848 | Lp | ||
Application
Suitable for drives demanding exact power transmission such as robotic machines, textile machinery, CNC machines, electronic equipment such as printers, scanners, currency counting machines etc.
